SK-301 outdoor cabinet, with axial fan, IP54

SK-301 outdoor cabinet, with axial fan, IP54
SK-301 outdoor cabinet, with axial fan, IP54SK-301 outdoor cabinet, with axial fan, IP54SK-301 outdoor cabinet, with axial fan, IP54SK-301 outdoor cabinet, with axial fan, IP54SK-301 outdoor cabinet, with axial fan, IP54
CategoriesOutdoor Cabinet
AlbumView larger image
Brand石羽
ModelSK-301
DimensionW650*D600*H1800mm
Internal space25U (19 inch rack)
Cooling system4 units of axial fan
MaterialGalvanized steel sheet
Protect levelIP54
Surface treatmentOutdoor powder coating
Mount methodOn the ground
StructureLighting is controlled by the door switch
Unit PriceUS $ 1000 / piece
FOB portTianjin
Terms of PaymentT/T
Update Time2020-07-11
Detail Information
Product Features
SK-301 outdoor communication cabinet is with fan cooling system. The lower part of the cabinet is the battery compartment and the upper part is the equipment compartment. The cabinet sheet metal structure is a double-layer insulation structure, and the middle of the double-layer sheet metal is filled with insulation materials. The phenolic foam insulation board with non-combustible performance is adopted. The insulation performance is good and the protection level reaches IP54, so that the cabinet can withstand severe cold and heat, rain, snow, wind and sand, and provide a good working environment for the equipment inside the cabinet in a bad environment.

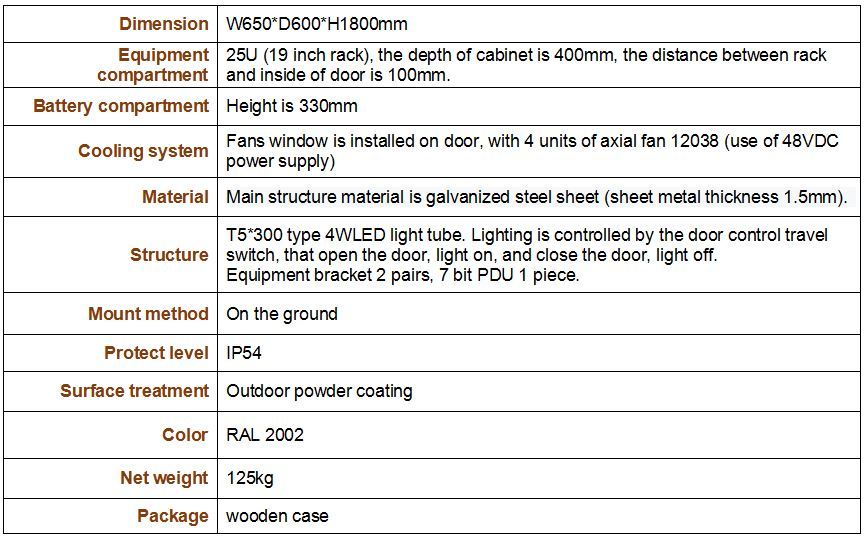

Technical Parameter
